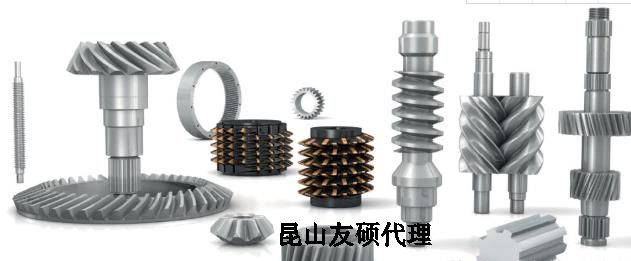

蔡司三坐标齿轮测量软件GEAR PRO支持的齿轮类型
1 圆柱渐开线齿轮 Cylindrical gears
2 圆柱非渐开线齿轮 Non-involute gears
3 圆锥齿轮 Bevel gears
4 蜗杆 Worm gears
5 压缩机转子 Rotors
6 滾刀 Hobs
各齿轮类型详细介绍:
1 圆柱渐开线齿轮 Cylindrical gears
渐开线齿廓和花键 Involute profiles and splines
直齿轮和斜齿轮 Spur and helical gears
外齿轮和内齿轮 External and internal gears
齿节 Gear segments
2 圆柱非渐开线齿轮 Non-involute gears
直线齿廓和非渐开线花键 Linear profiles and non-involute splines
锯形齿轮 Serrations
平行键花键 Parallel key splines
摆线轮,链轮等 Straight transversal profiles (e.g. cycloids, sprockets)
3 圆锥齿轮 Bevel gears
螺旋锥齿轮和直齿锥齿轮 Spiral and straight bevel gears
行星齿轮和齿圈 Pinions and ring gears
圆锥齿模 Bevel dies
3.1 基于CAD模型(Calypso应用之CAD模型格式介绍)
Nominal data based on Master gear method (digitalization) or CAD model
3.2 基于齿轮加工机床数据(格里森,克林贝格,德玛吉-森精机)
Nominal data imported via interface:
格里森接口 Gleason interface
克林贝格接口 Klingelnberg interface
德玛吉-森精机接口 DMG MORI interface
4 蜗杆 Worm gears
蜗杆轴齿面形状 Worm shafts with flank forms
渐开线蜗杆 ZI
阿基米德蜗杆 ZA
法向直廓蜗杆 ZN
锥面包络蜗杆 ZK
5 压缩机转子 Rotors
阳转子 Male rotors
阴转子 Female rotors
6 滾刀 Hobs
用于生产渐开线齿轮的单螺纹或多螺纹齿轮滚刀 One- and multiple-thread gear hobs for production of involute gears
全剖齿齿轮滚刀 Fullprofile gear hobs (with or without turning plates technology)
切向齿齿轮滚刀 Gear hobs with separated cutting edge geometry for right and left flank
Gear hobs with additional tip turning plates
